The Jawa Robby is a sports moped that uses, what appears to be, the same Chinese copy Honda 50 engine as the Jawa Betka and the Pionyr reproduction from Motoscoot. This has been offered, since 2001, by Jawa Moto themselves and is currently available in three different versions - the Robby, the Robby Enduro and, for off road use only, the Robby Cross. These were still on offer on the official Jawa website www.jawa.eu at the time of writing this in November 2012. All the information and pictures on this page are taken from the Jawa site.
|
|
|
|
 |
|
|

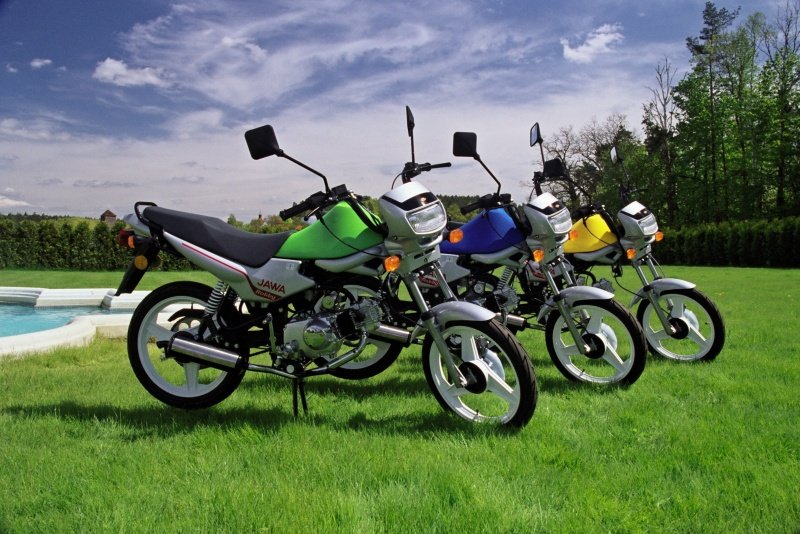

JAWA 50 Robby colour options
|
|
|
|
|
The text from the Jawa Moto website:-

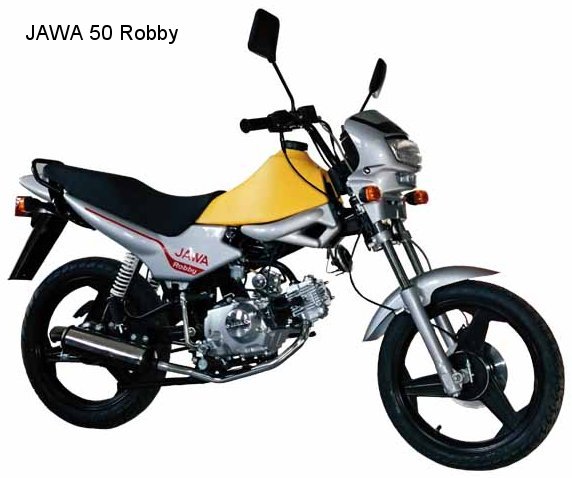

The JAWA 50 Robby is the smallest of the JAWA family of motorcycles. Due to it’s easy handling, it is ideal for novice riders.
Are you 15 and you want a motorcycle to start you on the road to being a competent rider? Do not hesitate! The JAWA 50 Robby is a bike to make your dreams come true.
Looking for reliable and inexpensive help with following your interests, for short trips and transport from one place to another? JAWA 50 Robby is a motorcycle that will always get you to the right place on time and provide an enjoyable experience.
JAWA 50 Robby motorcycle can be purchased in three versions:

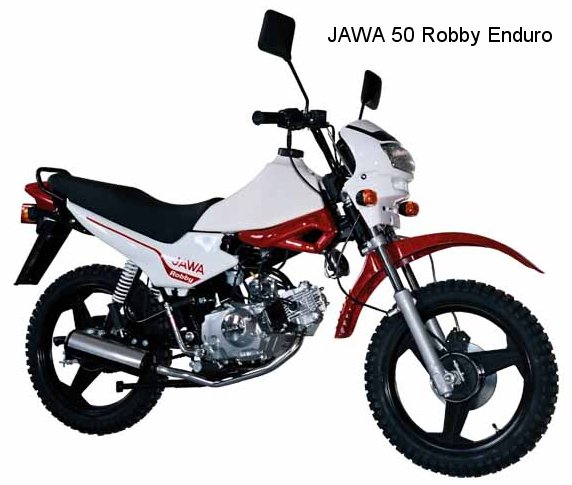

JAWA 50 Robby, JAWA 50 Robby Enduro, JAWA 50 Robby Cross.
The JAWA 50 Robby Cross motorcycle is only intended for sporting use.
|
|
|
Technical Data
|
|
Type of engine
|
4 stroke - air cooled
|
|
Number of cylinders
|
1
|
|
Bore x stroke
|
39 x 41.4 mm
|
|
Displacement
|
49.5 cc
|
|
Compression ratio
|
8.5 : 1
|
|
Maximum power
|
2.2 kW. at 9250 rpm
|
|
Maximum torque
|
3.2 Nm. at 5500 rpm
|
|
Starting system
|
Electric start or kick
|
|
Transmission
|
4 speed
|
|
Wheelbase
|
1,200 mm
|
|
Seat height
|
730 mm
|
|
Tank capacity
|
6.5 lt.
|
|
Reserve
|
1.2 lt.
|
|
Wheels
|
Cast
|
|
Tyres, front / rear
|
2.5” x 16” / 3” x 16”
|
|
Front suspension
|
Telescopic fork 80mm
|
|
Rear suspension
|
Hydraulic telescopic 70mm
|
|
Front brake
|
Hydraulic disk 200mm
|
|
Rear brake
|
mechanical drum 124mm
|
|
Dry weight
|
87 kg.
|
|
Maximum speed
|
48 km/h (30 mph)
|
|
|
|
|
|
Price List & Accessories
|
|
Prices are recommended retail in Czech Rep. incl. VAT and are valid from 1-1-2011
|
|
Model
|
Robby
|
Robby Enduro
|
Robby Cross
|
|
Basic price czk
|
29,990
|
30,990
|
25,000
|
|
=£GB (Nov.’12)
|
952
|
984
|
794
|
|
Colour Options
|
|
|
|
|
yellow / silver
|
no surcharge
|
x
|
x
|
|
red / white
|
x
|
no surcharge
|
x
|
|
white / yellow
|
x
|
x
|
no surcharge
|
|
Accessories
|
|
|
|
|
rear carrier
|
600 (£19)
|
600
|
600
|
|
rear box
|
1,800 (£57)
|
1,800
|
1,800
|
|
hand protectors
|
190 (£6)
|
190
|
190
|
|
centre stand
|
standard
|
standard
|
x
|
|
|
|
|
|
|
 |
|
|
|
|
From the Jawa Moto website:-

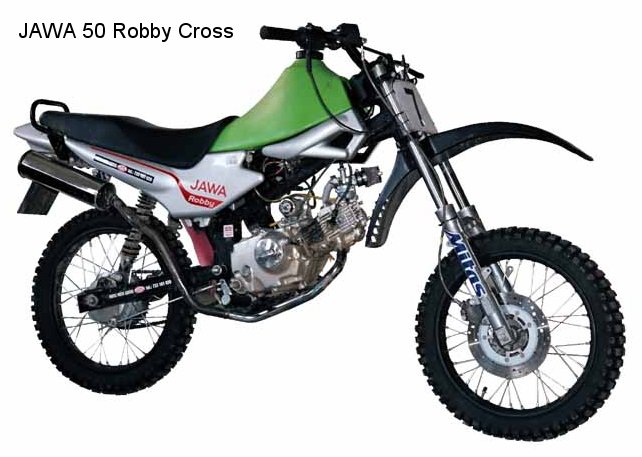

JAWA 50 Robby Cross motorcycle.
The engine is a version of the JAWA 50 Robby motorcycle, modified for performance without impairing engine life.
The frame is compared to the JAWA 50 Robby motorcycle, modified for difficult terrain.
The chassis has a reinforced front fork and rear suspension design builds on the JAWA 50 Robby.
The 16” wheels are shod with Mitas tyres.
As a complement to the bike, we prepare a set of sprockets with different sizes to adjust the power according to the characteristics of the track.
The motorcycle is on view and order from our authorised dealer:-
MATES moto-servis, Martin Pavlus, Lošánky u Kolína.
|
|
|
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
.
|
|
|
|
|
|
|
|
|
